JPEG Encoding Details

This article is synchronized and updated to xLog by Mix Space
For the best browsing experience, it is recommended to visit the original link
https://www.do1e.cn/posts/others/JPEG-detail

Preface#

This blog was originally published on 2021-08-22 on CSDN, and has been copied here with some formatting issues corrected.

Recently, I have been learning how to perform JPEG encoding. I found many articles online, but very few explain every detail clearly, leading to many pitfalls while programming. Therefore, I intend to write an article that covers the details, incorporating Python code as much as possible. The specific program can be referenced in my open-source project on GitHub.

Do1e/JPEG-encode

Of course, my introduction and code are not very complete and may even contain some errors; they can only serve as a beginner's guide, and I hope for your understanding.

Various Markers in JPEG Files#

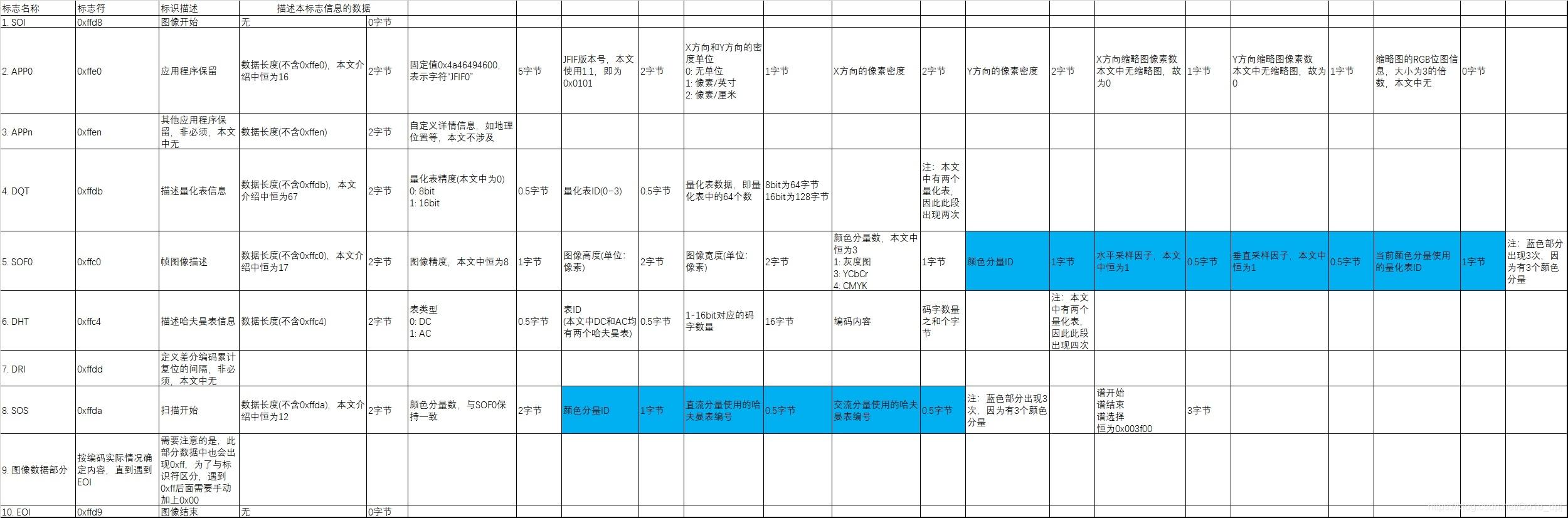

Many articles introduce the markers in JPEG files. I have also uploaded a document that annotates an actual image (click to download) for reference.

All markers start with 0xff (hexadecimal 255), followed by the byte count representing this block of data and the data describing this block's information, as shown in the figure below:

# Write JPEG format decoding information
# filename: output file name
# h: image height
# w: image width
def write_head(filename, h, w):
	# Open file in binary write mode (overwrite)
	fp = open(filename, "wb")

	# SOI
	fp.write(pack(">H", 0xffd8))
	# APP0
	fp.write(pack(">H", 0xffe0))
	fp.write(pack(">H", 16))			# APP0 byte count
	fp.write(pack(">L", 0x4a464946))	# JFIF
	fp.write(pack(">B", 0))				# 0
	fp.write(pack(">H", 0x0101))		# Version: 1.1
	fp.write(pack(">B", 0x01))			# Pixel density unit: pixels/inch
	fp.write(pack(">L", 0x00480048))	# XY direction pixel density
	fp.write(pack(">H", 0x0000))		# No thumbnail information
	# DQT_0
	fp.write(pack(">H", 0xffdb))
	fp.write(pack(">H", 64+3))			# Quantization table byte count
	fp.write(pack(">B", 0x00))			# Quantization table precision: 8bit(0)  Quantization table ID: 0
	tbl = block2zz(std_luminance_quant_tbl)
	for item in tbl:
		fp.write(pack(">B", item))	# Quantization table 0 content
	# DQT_1
	fp.write(pack(">H", 0xffdb))
	fp.write(pack(">H", 64+3))			# Quantization table byte count
	fp.write(pack(">B", 0x01))			# Quantization table precision: 8bit(0)  Quantization table ID: 1
	tbl = block2zz(std_chrominance_quant_tbl)
	for item in tbl:
		fp.write(pack(">B", item))	# Quantization table 1 content
	# SOF0
	fp.write(pack(">H", 0xffc0))
	fp.write(pack(">H", 17))			# Frame image information byte count
	fp.write(pack(">B", 8))				# Precision: 8bit
	fp.write(pack(">H", h))				# Image height
	fp.write(pack(">H", w))				# Image width
	fp.write(pack(">B", 3))				# Number of color components: 3(YCrCb)
	fp.write(pack(">B", 1))				# Color component ID: 1
	fp.write(pack(">H", 0x1100))		# Horizontal and vertical sampling factor: 1  Quantization table ID used: 0
	fp.write(pack(">B", 2))				# Color component ID: 2
	fp.write(pack(">H", 0x1101))		# Horizontal and vertical sampling factor: 1  Quantization table ID used: 1
	fp.write(pack(">B", 3))				# Color component ID: 3
	fp.write(pack(">H", 0x1101))		# Horizontal and vertical sampling factor: 1  Quantization table ID used: 1
	# DHT_DC0
	fp.write(pack(">H", 0xffc4))
	fp.write(pack(">H", len(std_huffman_DC0)+3))	# Huffman table byte count
	fp.write(pack(">B", 0x00))						# DC0
	for item in std_huffman_DC0:
		fp.write(pack(">B", item))					# Huffman table content
	# DHT_AC0
	fp.write(pack(">H", 0xffc4))
	fp.write(pack(">H", len(std_huffman_AC0)+3))	# Huffman table byte count
	fp.write(pack(">B", 0x10))						# AC0
	for item in std_huffman_AC0:
		fp.write(pack(">B", item))					# Huffman table content
	# DHT_DC1
	fp.write(pack(">H", 0xffc4))
	fp.write(pack(">H", len(std_huffman_DC1)+3))	# Huffman table byte count
	fp.write(pack(">B", 0x01))						# DC1
	for item in std_huffman_DC1:
		fp.write(pack(">B", item))					# Huffman table content
	# DHT_AC1
	fp.write(pack(">H", 0xffc4))
	fp.write(pack(">H", len(std_huffman_AC1)+3))	# Huffman table byte count
	fp.write(pack(">B", 0x11))						# AC1
	for item in std_huffman_AC1:
		fp.write(pack(">B", item))					# Huffman table content
	# SOS
	fp.write(pack(">H", 0xffda))
	fp.write(pack(">H", 12))			# Scan start information byte count
	fp.write(pack(">B", 3))				# Number of color components: 3
	fp.write(pack(">H", 0x0100))		# Color component 1 DC, AC used Huffman table ID
	fp.write(pack(">H", 0x0211))		# Color component 2 DC, AC used Huffman table ID
	fp.write(pack(">H", 0x0311))		# Color component 3 DC, AC used Huffman table ID
	fp.write(pack(">B", 0x00))
	fp.write(pack(">B", 0x3f))
	fp.write(pack(">B", 0x00))			# Fixed value
	fp.close()

At this point, we have only the image data part left to write, but how the image data part is encoded, as well as how the quantization and Huffman encoding mentioned above are implemented, please refer to the next section.

JPEG Encoding Process#

Since the JPEG encoding process requires the image to be divided into 8*8 blocks, the height and width of the image must be multiples of 8. Therefore, we can use image interpolation or subsampling methods to make slight changes to the image, transforming it into an image with both height and width as multiples of 8. For an image with thousands of pixels, this operation will not significantly change the overall aspect ratio of the image.

# Resize the image, must be divisible into 8*8 blocks
if((h % 8 == 0) and (w % 8 == 0)):
	nblock = int(h * w / 64)
else:
	h = h // 8 * 8
	w = w // 8 * 8
	YCrCb = cv2.resize(YCrCb, [h, w], cv2.INTER_CUBIC)
	nblock = int(h * w / 64)

Color Space Conversion#

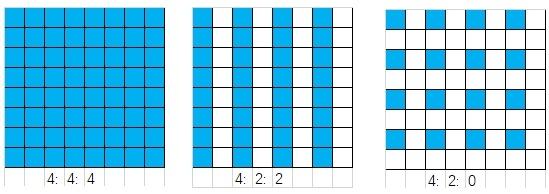

JPEG images uniformly use the YCbCr color space because the human eye is more sensitive to brightness than to chromaticity. Therefore, we selectively increase the compression of the Cb and Cr components, which can ensure that the visual quality of the image remains unchanged while significantly reducing the image size. After transforming to the YCbCr space, we can sample the Cb and Cr color components to reduce their number of points, achieving greater compression. Common sampling formats include 4:4:4, 4:2:2, and 4:2:0. This corresponds to the horizontal and vertical sampling factors in the SOF0 marker. For simplicity, all sampling factors in this article are set to 1, meaning no sampling is performed, with one Y component corresponding to one Cb and Cr component (4:4:4). In contrast, 4:2:2 means two Y components correspond to one Cb and Cr component, while 4:2:0 means four Y components correspond to one Cb and Cr component. As shown in the figure below, each cell corresponds to a Y component, while the blue cells are the sampled pixels of the Cb and Cr components.

The formulas for color space conversion are:

$Y = 0.299*R + 0.587*G + 0.114*B$
$Cb = -0.1687*R - 0.3313*G + 0.5*B + 128$
$Cr = 0.5*R - 0.4187*G - 0.0813*B + 128$

The above calculations are all rounded to integers. In a 24-bit RGB BMP image, the ranges of R, G, and B components are all 0-255. Through simple mathematical relationships, we can find that the ranges of Y, Cb, and Cr components are also 0-255. In JPEG images, we usually need to subtract 128 from each component to allow for both positive and negative ranges.

In Python, we can use functions from the OpenCV library to perform color space transformations:

YCrCb = cv2.cvtColor(BGR, cv2.COLOR_BGR2YCrCb)
npdata = np.array(YCrCb, np.int16)

8*8 Block Division#

In JPEG encoding, each 8*8 block is processed sequentially from top to bottom and left to right. The data from each block is then combined together. For each block's Y, Cb, and Cr color components, the same operations are performed (the quantization table and Huffman table used may differ).

for i in range(0, h, 8):
	for j in range(0, w, 8):
        ...

DCT Transformation#

DCT (Discrete Cosine Transform) converts spatial domain data into frequency domain data, allowing us to selectively reduce the data of high-frequency components without significantly affecting the visual quality of the image. Compared to the Discrete Fourier Transform, DCT operates in the real number domain, making it more advantageous for computer calculations. The formula for the Discrete Cosine Transform is as follows:

$F(u,v)=\frac2{\sqrt{MN}}\sum_{x=0}^{M-1}\sum_{y=0}^{N-1}f(x,y)C(u)C(v)\cos\frac{(2x+1)u\pi}{2M}\cos\frac{(2y+1)v\pi}{2N}$

where $C(u)=\begin{cases}\frac{1}{\sqrt{2}}&u=0\\1&u\neq0\end{cases}$ . In JPEG, $M=N=8$.

Of course, we can also use functions from the OpenCV library:

now_block = npdata[i:i+8, j:j+8, 0] - 128		# Extract an 8*8 block and subtract 128 from Y component
now_block = npdata[i:i+8, j:j+8, 2] - 128		# Extract an 8*8 block and subtract 128 from Cb component
now_block = npdata[i:i+8, j:j+8, 1] - 128		# Extract an 8*8 block and subtract 128 from Cr component
now_block_dct = cv2.dct(np.float32(now_block))	# DCT transformation

Quantization#

After the DCT transformation, the DC component is the first element of the 88 block, with low-frequency components concentrated in the top left corner and high-frequency components concentrated in the bottom right corner. To selectively discard high-frequency components, we can perform quantization, which essentially involves dividing each element in the 88 block by a fixed value. The elements in the quantization table are smaller in the top left corner and larger in the bottom right corner. An example of a quantization table is as follows (the Y component and Cb Cr components use different quantization tables):

# Luminance quantization table
std_luminance_quant_tbl = np.array(
	[
		[16, 11, 10, 16, 24, 40, 51, 61],
		[12, 12, 14, 19, 26, 58, 60, 55],
		[14, 13, 16, 24, 40, 57, 69, 56],
		[14, 17, 22, 29, 51, 87, 80, 62],
		[18, 22, 37, 56, 68,109,103, 77],
		[24, 35, 55, 64, 81,104,113, 92],
		[49, 64, 78, 87,103,121,120,101],
		[72, 92, 95, 98,112,100,103, 99]
	],
	np.uint8
)
# Chrominance quantization table
std_chrominance_quant_tbl = np.array(
	[
		[17, 18, 24, 47, 99, 99, 99, 99],
		[18, 21, 26, 66, 99, 99, 99, 99],
		[24, 26, 56, 99, 99, 99, 99, 99],
		[47, 66, 99, 99, 99, 99, 99, 99],
		[99, 99, 99, 99, 99, 99, 99, 99],
		[99, 99, 99, 99, 99, 99, 99, 99],
		[99, 99, 99, 99, 99, 99, 99, 99],
		[99, 99, 99, 99, 99, 99, 99, 99]
	],
	np.uint8
)

Quantization process code:

now_block_qut = quantize(now_block_dct, 0)		# Y component quantization
now_block_qut = quantize(now_block_dct, 2)		# Cb component quantization
now_block_qut = quantize(now_block_dct, 1)		# Cr component quantization

# Quantization
# block: current 8*8 block data
# dim: dimension  0:Y  1:Cr  2:Cb
def quantize(block, dim):
	if(dim == 0):
		# Use luminance quantization table
		qarr = std_luminance_quant_tbl
	else:
		# Use chrominance quantization table
		qarr = std_chrominance_quant_tbl
	return (block / qarr).round().astype(np.int16)

After quantization, many zeros appear in the lower right corner of the 8*8 block. To concentrate these zeros and allow run-length encoding to produce less data, we will perform a zigzag scan next.

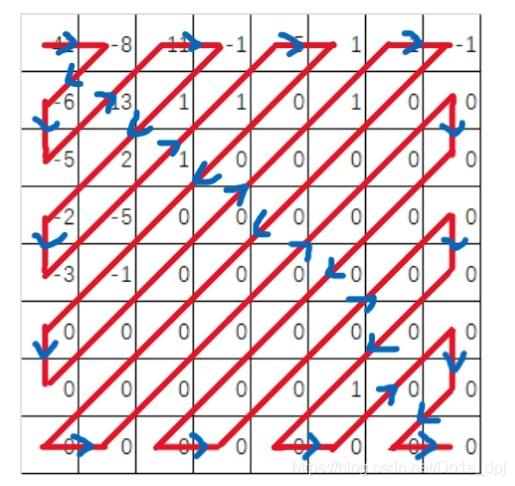

Zigzag Scan#

The so-called zigzag scan actually converts the 8*8 block into a 64-item list in the following order.

Ultimately, we obtain a list of length 64: (41, -8, -6, -5, 13, 11, -1, 1, 2, -2, -3, -5, 1, 1, -5, 1, 0, 0, 0, -1, 0, 0, 0, 0, 0, 0, 1, 1, -1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0). The subsequent operations will use this list as an example.

It is important to note that when storing the quantization table, we also need to perform a zigzag scan on the quantization table to store it in this form so that the image viewer can decode the correct image (I spent a lot of debugging time on this detail at the beginning), as seen in the code that writes the identifiers at the beginning of this article.

now_block_zz = block2zz(now_block_qut)			# Zigzag scan

# Zigzag scan
# block: current 8*8 block data
def block2zz(block):
	re = np.empty(64, np.int16)
	# Current position in the block
	pos = np.array([0, 0])
	# Define four scanning directions
	R = np.array([0, 1])
	LD = np.array([1, -1])
	D = np.array([1, 0])
	RU = np.array([-1, 1])
	for i in range(0, 64):
		re[i] = block[pos[0], pos[1]]
		if(((pos[0] == 0) or (pos[0] == 7)) and (pos[1] % 2 == 0)):
			pos = pos + R
		elif(((pos[1] == 0) or (pos[1] == 7)) and (pos[0] % 2 == 1)):
			pos = pos + D
		elif((pos[0] + pos[1]) % 2 == 0):
			pos = pos + RU
		else:
			pos = pos + LD
	return re

Differential Encoding (DC Component)#

The values of DC components are often large, and the DC components of adjacent 8*8 blocks are usually very similar. Therefore, using differential encoding can save space to a greater extent. Differential encoding means storing the difference between the current block's DC component and the previous block's DC component, while the first block stores its own value. It is important to note that the Y, Cb, and Cr components are differentially encoded correspondingly, meaning each component is subtracted from its corresponding previous value. In the following section, I will introduce how to encode and store the DC component now_block_dc.

last_block_ydc = 0
last_block_cbdc = 0
last_block_crdc = 0

now_block_dc = now_block_zz[0] - last_block_ydc # Record the DC component in differential form
last_block_ydc = now_block_zz[0]				# Record this value

now_block_dc = now_block_zz[0] - last_block_cbdc
last_block_cbdc = now_block_zz[0]

now_block_dc = now_block_zz[0] - last_block_crdc
last_block_crdc = now_block_zz[0]

Run-Length Encoding of Zeros (AC Component)#

After the zigzag scan, many zeros are concentrated together. The AC component list is: (-8, -6, -5, 13, 11, -1, 1, 2, -2, -3, -5, 1, 1, -5, 1, 0, 0, 0, -1, 0, 0, 0, 0, 0, 0, 1, 1, -1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0).

Run-length encoding of zeros stores two numbers each time; the second number is a non-zero number, and the first number indicates how many zeros precede this non-zero number. Finally, two zeros are added as an end marker (especially note that when the input data does not end with zero, two zeros are not needed as an end marker; this bug took me a long time to find, see line 23 of the code below). After run-length encoding, the above list becomes: (0, -8), (0, -6), (0, -5), (0, 13), (0, 11), (0, -1), (0, 1), (0, 2), (0, -2), (0, -3), (0, -5), (0, 1), (0, 1), (0, -5), (0, 1), (3, -1), (6, 1), (0, 1), (0, -1), (27, 1), (0, 0). The length of this data is 42, which is a slight reduction compared to the original 63. Of course, this is a special case; actual data will have more zeros, even all zeros, and the encoded size can be smaller.

You may have noticed that the data (27, 1) is highlighted in red because in the encoding of the eighth part, the first number is stored as a 4-bit number, so the range is 0-15. Here, it clearly exceeds that, so we need to split it into (15, 0) and (11, 1), where (15, 0) represents 16 zeros, and (11, 1) represents 11 zeros followed by a 1.

now_block_ac = RLE(now_block_zz[1:])

# Run-length encoding of zeros
# AClist: AC data to be encoded
def RLE(AClist: np.ndarray) -> np.ndarray:
	re = []
	cnt = 0
	for i in range(0, 63):
		if(AClist[i] == 0 and cnt != 15):
			cnt += 1
		else:
			re.append(cnt)
			re.append(AClist[i])
			cnt = 0
	# Remove all trailing [15 0]
	while(re[-1] == 0):
		re.pop()
		re.pop()
		if(len(re) == 0):
			break
	# Add two zeros as an end marker
	if(AClist[-1] == 0):
		re.extend([0, 0])
	return np.array(re, np.int16)

Special Binary Encoding in JPEG#

After the above groundwork, this section will truly introduce how the encoded DC and AC components are written into the file in data stream form.

In JPEG encoding, there are the following binary encoding forms:

               Value               Bit Length            Actual Stored Value
                0                   0                   None
              -1,1                  1                  0,1
           -3,-2,2,3                2              00,01,10,11
     -7,-6,-5,-4,4,5,6,7            3    000,001,010,011,100,101,110,111
       -15,..,-8,8,..,15            4       0000,..,0111,1000,..,1111
      -31,..,-16,16,..,31           5     00000,..,01111,10000,..,11111
      -63,..,-32,32,..,63           6                  ...
     -127,..,-64,64,..,127          7                  ...
    -255,..,-128,128,..,255         8                  ...
    -511,..,-256,256,..,511         9                  ...
   -1023,..,-512,512,..,1023       10                  ...
  -2047,..,-1024,1024,..,2047      11                  ...

For a number to be stored, we need to obtain the required bit length and the actual binary value to be stored according to the above form. Observing the pattern, it is not difficult to find that the stored value of a positive number is its actual binary, and the bit length is also its actual bit length. The same applies to negative numbers, where the binary value is the bitwise negation of the number. Zero does not need to be stored.

# Special binary encoding format
# num: number to be encoded
def tobin(num):
	s = ""
	if(num > 0):
		while(num != 0):
			s += '0' if(num % 2 == 0) else '1'
			num = int(num / 2)
		s = s[::-1]    # Reverse
	elif(num < 0):
		num = -num
		while(num != 0):
			s += '1' if(num % 2 == 0) else '0'
			num = int(num / 2)
		s = s[::-1]
	return s

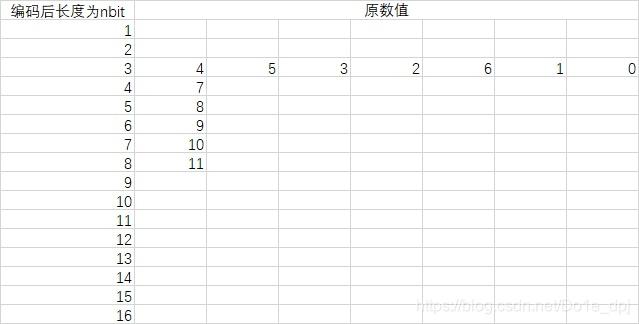

For the DC component, assuming the value after differential encoding is -41, we can find that its bit length is 6, and the stored binary data stream is 010110. For the data 6, we need to use the normalized Huffman coding to store its binary data stream; this part will be introduced in section 9. For now, let's assume the stored binary data stream for 6 is 100, then the DC value for a color component of this 8*8 block is stored as 100010110.

After writing the binary data stream for the DC component into the file, we then encode the AC values for this color component of the 8*8 block. After run-length encoding, the values are: (0, -8), (0, -6), (0, -5), (0, 13), (0, 11), (0, -1), (0, 1), (0, 2), (0, -2), (0, -3), (0, -5), (0, 1), (0, 1), (0, -5), (0, 1), (3, -1), (6, 1), (0, 1), (0, -1), (15, 0), (11, 1), (0, 0).

First, we store (0, -8). For the second number, we perform the same operation and obtain 4 bits and 0111. However, unlike the DC component, we need to perform normalized Huffman coding on 0x04, where the high four bits represent the first number of (0, -8), and the fourth bit represents the bit length of the second number. Assuming the normalized Huffman coding for 0x04 results in 1011, then (0, -8) is stored as 10110111. Next, we perform the same operations for (0, -6) and so on, writing the resulting data streams into the file.

To give another example, (6, 1), where 1 is stored as 1, 1 bit, so for 0x61, we perform normalized Huffman coding, assuming it results in 1111011, then (6, 1) is stored as 11110111. (15, 0) only stores the normalized Huffman coding value of 0xf0.

After writing the data for one color component (assumed to be Y) of an 88 block, we then write the data for the Cb color component of this block, followed by the Cr component data. Using the same method, we write the data for each 88 block from left to right and top to bottom, and finally write the EOI marker (0xffd9) to indicate the end of the image.

Note: During the data writing process, we need to check if we are writing 0xff. To prevent marker conflicts, we need to append 0x00 afterward.

s = write_num(s, -1, now_block_dc, DC0)			# Write DC data according to encoding method
for l in range(0, len(now_block_ac), 2):		# Write AC data
	s = write_num(s, now_block_ac[l], now_block_ac[l+1], AC0)
	while(len(s) >= 8):							# Record data too long will cause memory overflow
		num = int(s[0:8], 2)					# Running speed slows down
		fp.write(pack(">B", num))
		if(num == 0xff):						# To prevent marker conflicts
			fp.write(pack(">B", 0))				# If data contains 0xff, append two 0x00
		s = s[8:len(s)]

# Write data according to encoding method
# s: binary data not yet written to file
# n: number of leading zeros (-1 represents DC)
# num: data to be written
# tbl: normalized Huffman coding dictionary
def write_num(s, n, num, tbl):
	bit = 0
	tnum = num
	while(tnum != 0):
		bit += 1
		tnum = int(tnum / 2)
	if(n == -1):					# DC
		tnum = bit
		if(tnum > 11):
			print("Write DC data Error")
			exit()
	else:							# AC
		if((n > 15) or (bit > 11) or (((n != 0) and (n != 15)) and (bit == 0))):
			print("Write AC data Error")
			exit()
		tnum = n * 10 + bit + (0 if(n != 15) else 1)
	# Normalized Huffman coding records the number of zeros (AC) and the bit length of num
	s += tbl[tnum].str_code
	# Special form of data storage for num
	s += tobin(num)
	return s

Normalized Huffman Coding#

In this article, four coding tables for normalized Huffman coding are introduced, which are used for luminance DC components, chrominance DC components, luminance AC components, and chrominance AC components.

# Luminance DC normalized Huffman coding table
std_huffman_DC0 = np.array(
	[0, 0, 7, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0,
	 4, 5, 3, 2, 6, 1, 0, 7, 8, 9, 10, 11],
	np.uint8
)
...
# Convert to Huffman dictionary
DC0 = DHT2tbl(std_huffman_DC0)    # Luminance DC component
DC1 = DHT2tbl(std_huffman_DC1)    # Chrominance DC component
AC0 = DHT2tbl(std_huffman_AC0)    # Luminance AC component
AC1 = DHT2tbl(std_huffman_AC1)    # Chrominance AC component

In the above code, std_huffman_DC0, etc., are the actual values stored in the identifiers. The first 16 numbers (0, 0, 7, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0) represent how many numbers there are for each length of 1-16 bits after encoding, followed by 12 numbers that exactly equal the sum of the previous 16 numbers. std_huffman_DC0 describes the following figure:

Now we only know the length of the encoded data for each original data, but we do not know what the actual values are.

Normalized Huffman coding has its own set of rules:

The first number of the minimum encoding length is encoded as 0;
The encoding of the same length is continuous;
The first number of the next encoding length (assumed to be j) depends on the last number of the previous encoding length (assumed to be i), i.e., a=(b+1)<<(j-i).

According to rule 1, we know that the encoding for 4 is 000. According to rule 2, the encoding for 5 is 001, the encoding for 3 is 010, the encoding for 2 is 011..., and the encoding for 0 is 110. According to rule 3, the encoding for 7 is 1110, the encoding for 8 is 11110...

# Class to record Huffman dictionary
# symbol: original data
# code: corresponding encoded data
# n_bit: number of bits in the encoding
# str_code: binary data of the encoding
class Sym_Code():
	def __init__(self, symbol, code, n_bit):
		self.symbol = symbol
		self.code = code
		str_code=''
		mask = 1 << (n_bit - 1)
		for i in range(0, n_bit):
			if(mask & code):
				str_code += '1'
			else:
				str_code += '0'
			mask >>= 1
		self.str_code = str_code
	"""Define output format"""
	def __str__(self):
		return "0x{:0>2x}    |  {}".format(self.symbol, self.str_code)
	"""Define sorting criteria"""
	def __eq__(self, other):
		return self.symbol == other.symbol
	def __le__(self, other):
		return self.symbol < other.symbol
	def __gt__(self, other):
		return self.symbol > other.symbol


# Convert normalized Huffman coding table to Huffman dictionary
# data: defined normalized Huffman coding table
def DHT2tbl(data):
	numbers = data[0:16]				# Number of codes corresponding to lengths of 1-16 bits
	symbols = data[16:len(data)]		# Original data
	if(sum(numbers) != len(symbols)):	# Check if it is a valid normalized Huffman coding table
		print("Wrong DHT!")
		exit()
	code = 0
	SC = []								# List to record the dictionary
	for n_bit in range(1, 17):
		# Calculate the dictionary according to the normalized Huffman coding rules
		for symbol in symbols[sum(numbers[0:n_bit-1]):sum(numbers[0:n_bit])]:
			SC.append(Sym_Code(symbol, code, n_bit))
			code += 1
		code <<= 1
	return sorted(SC)

The resulting Huffman dictionary is quite long; you can check it in my GitHub project. By finding the pattern, you can understand how I derived the index of the dictionary in the write_num function.

Do1e/JPEG-encode
